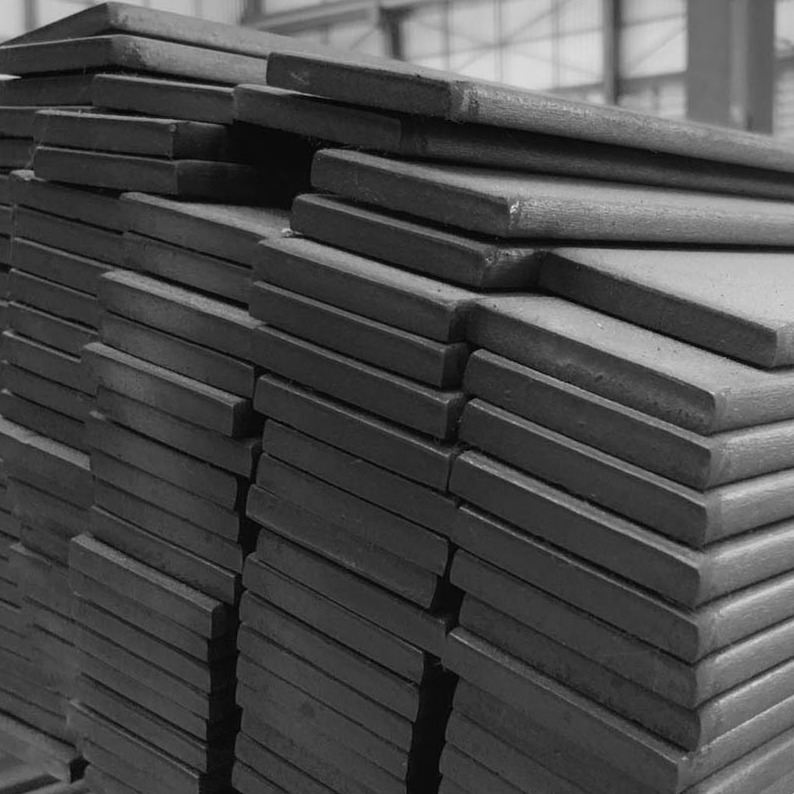

Mahadev Steel Hub supplies a wide range of Mild Steel Flat Bars. These flats are rolled in low temperature which imparts higher strength to the structures.
MS Flat Bars are used by Grating manufactures, cable trays, bright bar industries, automobile and auto-ancillaries, Truck trailers, Tippers, Railways, bus body, link plate, brilliant bar ventures, car and auto-ancillaries, elevators and escalators, Scaffolding manufacturers, Base plates, Earthing material, Ship building, washers, flanges, clamps and many more engineering industries. Mild steel flat bar is a financially savvy and surprisingly adaptable type of steel which is fit to an enormous scope of utilization.
In spite of the fact that it shows the magnificent mix of solidarity, flexibility and form ability of steel, the decreased carbon substance of mild steel makes it simpler to work and along these lines extraordinary for manufacture and construction purposes. MS flats are used for shed, fabrication work, machinery production, heavy structure and building constructions. A portion of the highlights that forms flats is like excellent straightness, superior dimensional tolerance and improved machining.. Similarly as with all Steel structures, the reasonability of all joining systems from bolting to riveting which means that MS flat steel bars can be made to take any ideal shape or clad with any ideal material. MS steel flats are an essential component utilized in the field of construction.
With sincerity and hard work of our professionals, we have carved a niche for ourselves in this domain by providing a premium quality gamut of Mild Steel Flat Bar.
Specifications :
| Material | MS |
| Shape | FLAT |
| Size/Dimension | 25mm – 300 mm |
| Material Grade | MS |
| Technique | Hot Rolled |
| Single Piece Length | 6 meter |
| Usage/Application | Industrial |
| Application | Construction,Manufacturing |
| Length | 18 Feet |
| Width | 4 Inch |
| Thickness | 5mm |
| Size (mm) | Weight (kg/ft) | Weight (Kg/mtr) |
| 21 x 6 | 0.3 | 1 |
| 28 x 6 | 0.4 | 1.3 |
| 30 x 3 | 0.2 | 0.7 |
| 30 x 5 | 0.4 | 1.2 |
| 30 x 6 | 0.4 | 1.4 |
| 38 x 3 | 0.4 | 1.4 |
| 38 x 5 | 0.5 | 1.5 |
| 38 x 12 | 1.1 | 3.6 |
| 45 x 12 | 1.3 | 4.2 |
| 50 x 4 | 2 | 1.6 |
| 60 x 6 | 0.9 | 2.8 |
| 65 x 8 | 1.2 | 4.1 |
| 65 x 10 | 1.6 | 5.1 |
| 65 x 12 | 1.9 | 6.1 |
| 65 x 16 | 2.5 | 8.2 |
| 65 x 20 | 3.1 | 10.2 |
| 65 x 25 | 3.9 | 12.8 |
| 75 x 32 | 4.5 | 18.9 |
| 200 x 6 | 2.9 | 9.4 |
| 200 x 8 | 3.8 | 12.6 |
| 200 x 10 | 4.8 | 15.7 |
| 200 x 12 | 5.7 | 18.8 |
| 200 x 16 | 7.7 | 25.1 |
| 200 x 20 | 9.6 | 31.4 |
| 200 x 25 | 12 | 39.2 |
| 250 x 6 | 3.6 | 11.8 |
| 250 x 8 | 4.8 | 15.7 |
| 250 x 10 | 6 | 19.6 |
| 250 x 12 | 7.2 | 23.6 |
| 250 x 16 | 9.6 | 31.4 |
| 250 x 20 | 12 | 29.2 |
| 250 x 25 | 15 | 49.1 |
| 300 x 6 | 4.3 | 14.1 |
| 300 x 8 | 5.8 | 18.8 |
| 300 x 10 | 7.2 | 23.6 |
| 300 x 12 | 8.6 | 28.3 |
| 300 x 16 | 11.5 | 37.7 |
