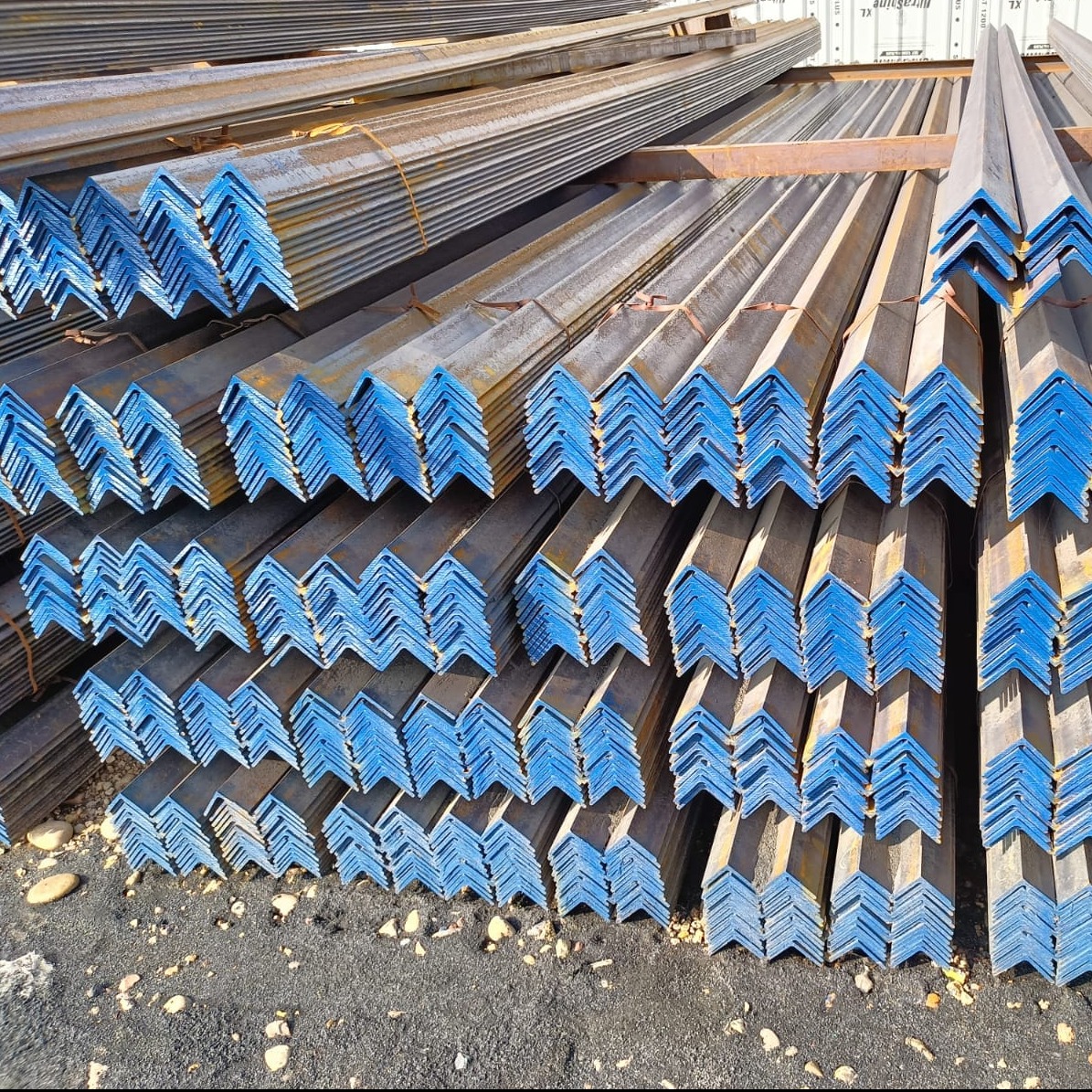

MS angle has excellent mechanical properties and is suitable for welding, drilling and cutting according to individual design requirements. As a popular resource for MS Angle, equal and unequal angles are extremely versatile and can be used in many technical applications such as reinforcements, transmission towers, bridges and sheds. Its corrosion resistance extends the life of the building.Lightweight steel angles can be easily customized by custom cutting, drilling and machining to meet your requirements.
| Size | 20mm to 200 mm |
| Thickness | 3mm to 12 mm |
| Shape | L Shaped |
| Usage/Application | Construction |
| Material | Mild Steel |
| Surface Finish | Ms |
| Standard | MS |
| Design | all range and size |
| Brand | MS |
| L Shape | L shaped |
| Hot Rolled | Hot Rolled Angle |
| Country of Origin | Made in India |
The various forms available for MS Angle are:
SIZES WITH SECTION WEIGHT OF EQUAL ANGLES
| Size | Weight in Kgs. | Gauge |
| in mm | Per Feet | Per Mtr. |
| 20x20x3 | 0.274 | 0.899 |
| 25x25x3 | 0.335 | 1.099 |
| 25x25x5 | 0.548 | 1.798 |
| 31x31x3 | 0.390 | 1.280 |
| 35x35x5 | 0.792 | 2.599 |
| 37x37x3 | 0.518 | 1.700 |
| 40x40x3 | 0.548 | 1.798 |
| 40x40x5 | 0.915 | 3.002 |
| 40x40x6 | 1.066 | 3.498 |
| 50x50x5 | 1.158 | 3.799 |
| 50x50x6 | 1.372 | 4.502 |
| 60x60x6 | 1.645 | 5.397 |
| 65x65x6 | 1.767 | 5.798 |
| 65x65x8 | 2.346 | 7.697 |
| 65x65x10 | 2.864 | 9.397 |
| 75x75x6 | 2.072 | 6.798 |
| 75x75x8 | 2.712 | 8.898 |
| 75x75x10 | 3.352 | 10.998 |
| 80x80x6 | 2.224 | 7.297 |
| 80x80x8 | 2.925 | 9.597 |
| 90x90x6 | 2.499 | 8.199 |
| 90x90x8 | 3.292 | 10.801 |
| 90x90x10 | 4.084 | 13.400 |
| 100x100x6 | 2.804 | 9.200 |
| 100x100x8 | 3.687 | 12.097 |
| 100x100x10 | 4.545 | 14.912 |
| 100x100x12 | 5.395 | 17.701 |
| 110x110x12 | 5.028 | 16.497 |
| 130x130x10 | 6.004 | 19.699 |
| 150x150x10 | 6.950 | 22.803 |
| 150x150x12 | 8.290 | 27.199 |
| 150x150x16 | 10.911 | 35.799 |
| 150x150x20 | 13.441 | 44.100 |
